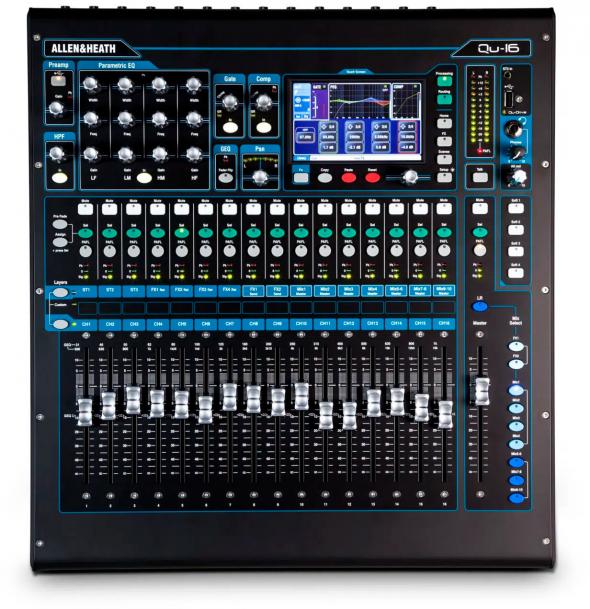

Allen and Heath QU16 Digital Mixer
Description:
Qu Makes Mixing Feel Natural
Massive processing power and advanced functionality counts for nothing if you can?t access the controls you need in a heartbeat.
Qu-16 has a fader per mono input channel and fewer fader layers for simpler, quicker workflow. Because every mic input is presented on its own fader for fast, easy control, this makes Qu-16 the perfect mixer for first-time converts from analogue to digital and those not comfortable working with several layers of faders.
The True Colour Touchscreen and its dedicated rotary encoder form the heart of Qu-16?s interface, providing super-fast access to all settings and parameters. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.
Complementing the touchscreen is the SuperStrip ? a set of single-function physical controls for instant access to gain, HPF, 4 band PEQ, gate, compressor, GEQ and pan.
Coming from analogue? Qu will make you feel at home.
Features:

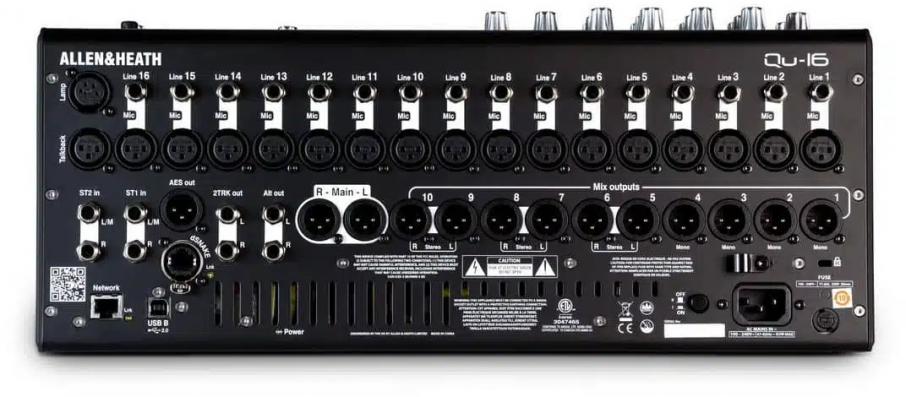

- Channels & Inputs: 16 mono mic/line inputs (XLR and TRS), 3 stereo inputs (TRS), and a talkback mic input.Outputs: 12 mix outputs (XLR), including 4 mono mixes, 3 stereo-pair mixes, and main LR, plus AES digital out.Faders: 17 motorized 100mm faders (16 channel strips + 1 master) across 3 assignable layers.Display: 800?480 color touchscreen.Processing & FX: 4 dedicated stereo RackFX engines, 4 mute groups, and 4 DCA groups.USB & Audio Interface: Built-in 24?22 USB audio interface and Qu-Drive 18-track direct multitrack recording/playback to a USB hard drive.System Expansion: dSNAKE remote audio port for connection to AB168, AR2412, or AR84 stageboxes.Dimensions & Weight: 17.32" x 19.52" x 7.32" (440mm x 500mm x 186mm); weighs roughly 22 lbs (10 kg), with optional 19-inch rack mounting kit available.
Options:
- comes with Rack
