HDMI SDI Bidirectional Converter Decimator MD-LX
Description:

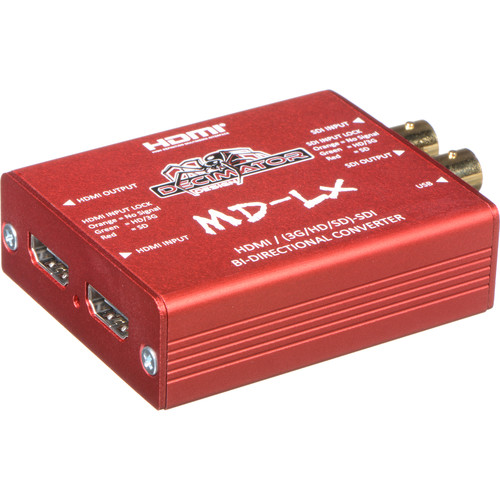

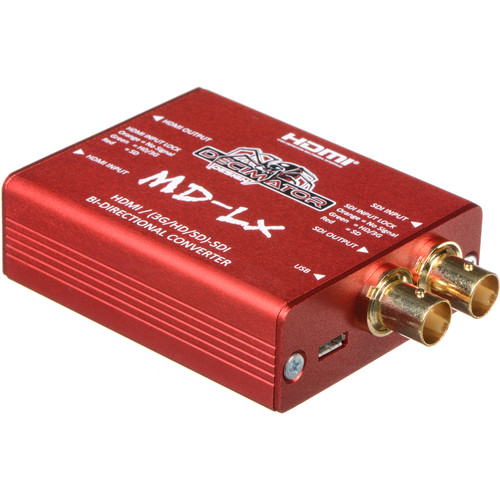

The DECIMATOR MD-LX is a pocket-sized bidirectional converter featuring an HDMI input and output on one side, and 3G/HD/SD-SDI input and output on the other. It supports up to Full HD 1080p60 resolution and offers multiple input/output conversion modes.
Conversion Modes
Auto select: Active input to all outputs, or SDI-to-HDMI and HDMI-to-SDI if both inputs are active
HDMI input to SDI output and SDI input to HDMI output
SDI input to HDMI and SDI outputs
HDMI input to HDMI and SDI outputs
Features:
- Supports 3G Level A and B and allows for conversion between both
- USB port for power, control, and firmware upgrades
- HDMI and SDI input locks
