Sennheiser EW-D 835-S SET Digital Wireless Handheld Microphone System with MMD 835 Capsule (Q1-6: 470 to 526 MHz)

Sennheiser EW-D 835-S SET Digital Wireless


The Sennheiser EW-D 835-S SET with Handheld and MMD 835 Mic Capsule combines pristine 24-bit digital audio with an impressive 134 dB dynamic range, equidistant tuning grid, and automated Bluetooth set up App for your phone to create a professional rackmount wireless microphone system that anyone can use. Though easy to set up and simple to operate, the system's pro-level feature set is well equipped to handle the needs of both first-time and experienced users alike, including presenters and lecturers working in business and educational settings, clergy in houses of worship, and live performers in theaters or on musical stages.

The EW-D's ultrawide dynamic range means that input-sensitivity adjustments on the transmitter are not required. Based on the company's higher-end Digital 6000/9000 wireless systems, the equidistant tuning grid removes the need for frequency coordination and enables you to operate up to 90 mic channels simultaneously. The UHF transmission greatly enhances range (up to 330') and the wide 56 MHz bandwidth gives you the ability to find a clean channel from 2240 available frequencies.

Intelligent Switching Diversity offers effective protection against RF interference, and the ultralow 1.9ms latency eliminates any noticeable lag when performing live. Additionally, Bluetooth connectivity enables seamless pairing and remote control from your phone via the Smart Assist App. All these features allow the EW-D to automatically handle mic levels and secure the most reliable signal for you in a matter of seconds?without the hassles that can make using a wireless system challenging.

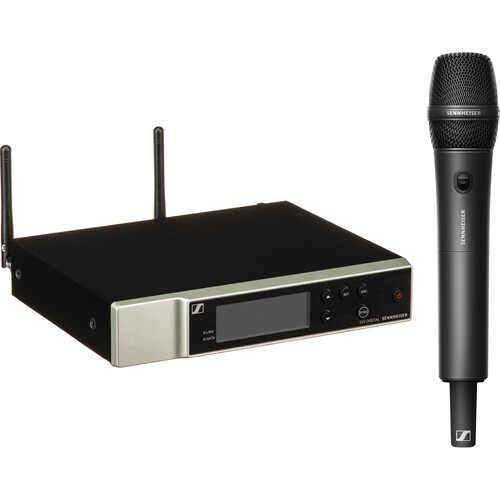

This EW-D 835-S SET is configured with a single-channel EW-D EM receiver, an interchangeable MMD 835 dynamic cardioid microphone capsule optimized for vocals and speech intelligibility, and a robust, lightweight EW-D SKM-S handheld transmitter with switch that features a metal housing, well suited for daily use on stage.

The transmitter pairs with the receiver via Bluetooth Low Energy from up to 120' away, enabling you to quickly pair the mic directly from the stage without having to bring it close to the receiver. The transmitter provides up to 8 hours of operation on two AA batteries or 12 hours with a BA 70 lithium-ion rechargeable battery pack (available separately). The L70 USB dual-charging station (available separately) is required for the BA 70 batteries.

The half-rack EW-D EM receiver with removable antennas is housed in a rugged, all-metal chassis built to withstand the rigors of professional use. It can either sit on a tabletop or be rackmounted for portable rigs and permanent A/V installs.

The receiver features a high-contrast, black-&-white OLED display that uses a streamlined menu system with a dedicated Escape button for quick menu navigation, even in low-light situations. The auto-scan function automatically seeks out the cleanest available frequency for you. If you prefer, you can also configure, control, and operate your system via Bluetooth using the Smart Assist App installed on your iOS/Android phone/tablet?within a 120' range.

Note: The EW-D digital system is NOT backward-compatible with previous evolution analog systems.

Legendary Sennheiser Sound with Ultrawide 134 dB Dynamic Range

With a remarkable 134 dB dynamic range on the transmitter, the days of worrying about overloading your signal are over. The EW-D can handle a wide variety of sound sources, including loud vocalists and performers, all without requiring any gain adjustment at the transmitter.

The ultrawide dynamic range yields impressive signal-to-noise performance and accurate transient response, which bring out all the nuances of your sound.

With 24-bit digital audio and a flat 20 Hz to 20 kHz frequency response, the EW-D delivers clear, accurate audio reproduction.

The system's ultralow 1.9ms latency is practically undetectable, helping vocalists to stay in the groove when performing live.


  • Wireless Technology Digital UHF
  • Number of RF Channel Frequencies 2240
  • Included Transmitters 1 x Handheld
  • Diversity Intelligent Switching Diversity
  • RF Frequency Band 470 to 526 MHz
  • RF Bandwidth 56 MHz
  • Frequency Step Size 25 kHz
  • RF Channel Scanning Auto-Scan
  • Max Operating Range 328.1' / 100 m (Line of Sight)
  • Max Transmitters per Band 90
  • Bluetooth 5.1
  • Bluetooth Operating Distance 120' / 36.6 m (Transmitter Sync, App Control)
  • Sample Rate/Resolution 24-Bit
  • Latency 1.9 ms
  • Dynamic Range 134 dB
  • Encryption None
  • Receiver
  • Receiver Type Tabletop / Rackmount
  • Mounting Options Rackmount
  • Rackmount Size 1 RU (1/2 Rack)
  • Antenna 2 x 1/4 Wave Rod, BNC (Rear-Mount)
  • Number of Audio Channels 1
  • Audio I/O 1 x XLR 3-Pin Male Balanced Output (Lockable)
  • 1 x 1/4" TRS Female Unbalanced Output
  • Gain Range -3 to +42 dB (3 dB Steps)
  • Audio Output Level XLR Output:
  • +18 dBu (Balanced)
  • 1/4" Output:
  • +12 dB (Unbalanced)
  • Frequency Response 20 Hz to 20 kHz
  • Network I/O None
  • Word Clock I/O None
  • RF Output Power 10 mW (EIRP)
  • Power Requirements AC/DC Power Adapter
  • AC/DC Power Adapter 11 to 13 VDC at 300 mA (Included)
  • AC Input Power 100 to 240 VAC, 50 / 60 Hz
  • Display & Indicators 1 x OLED (AF Level, Frequency, Mute, RF Level, Transmitter Battery Status)
  • Housing Metal
  • Operating Temperature 14 to 131?F / -10 to 55?C
  • Dimensions 7.4 x 1.7 x 8.3" / 189 x 44 x 212 mm
  • Weight 2.2 lb / 1 kg
  • Transmitter
  • Transmitter Type Handheld
  • RF Output Power 10 mW (ERP)
  • Up to 10 mW (EIRP)
  • Audio I/O None
  • Muting Mute Switch
  • Audio Input Level 2 to 4.35 V RMS
  • Auto-Level Control No
  • Antenna 1 x Internal (Handheld)
  • Power Requirements Battery
  • Battery Type 2 x AA (Included)
  • 1 x Sennheiser Battery Pack (Not Included, Replaceable)
  • Approx. Battery Life 8 Hours (Alkaline)
  • 12 Hours (Sennheiser Battery Pack)
  • Display & Indicators 1 x LED (Mute)
  • 1 x LED (Sync)
  • Housing Metal
  • Dimensions 2 x 10.6" / 50 x 268 mm
  • Weight 10.7 oz / 304 g (without Batteries)
  • Microphone
  • Microphone Type Handheld Capsule
  • Color Black
  • Sound Field Mono
  • Capsule Dynamic
  • Polar Pattern Cardioid
  • Equivalent Noise Level 32 dB
  • Maximum SPL 154 dB SPL
  • Sensitivity 2.1 mV/Pa
