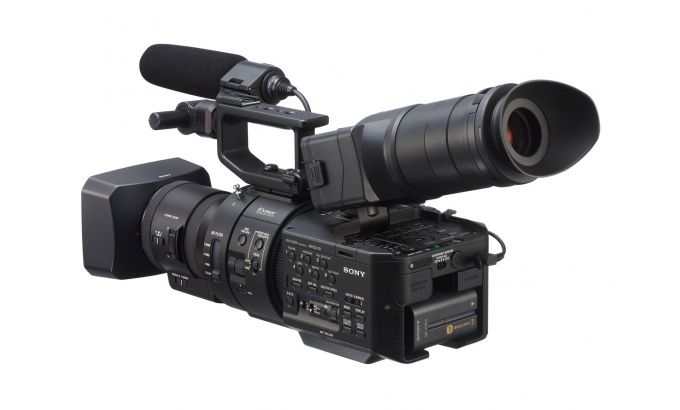

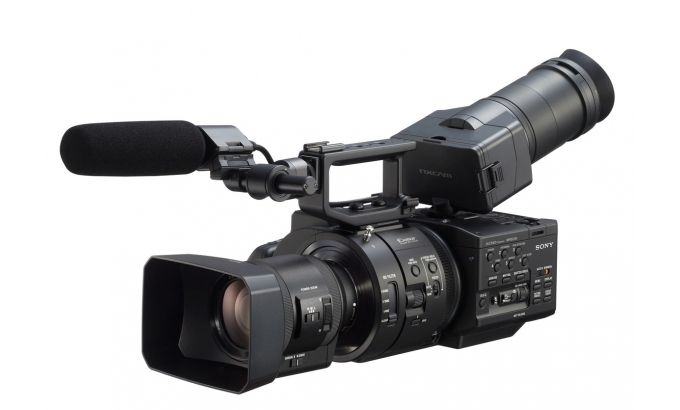

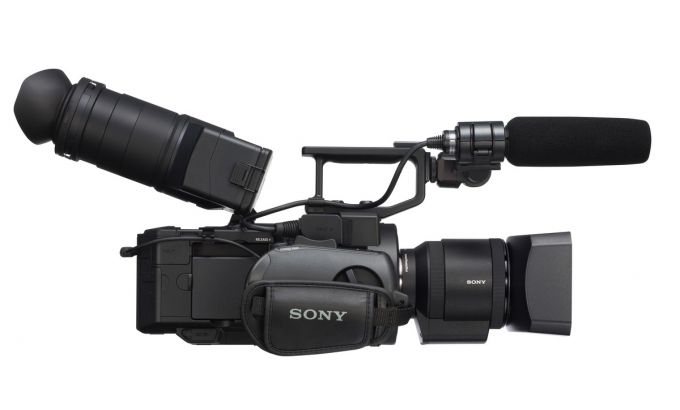

Sony NEX-FS700R 4k RAW Video Camera with 18-200 lens

Sony FS700R 4K video camera for rent Seattle

Description:

The NEX-FS700RH is an NXCAM camcorder with a superior 4K Super 35mm CMOS sensor, super slow-motion capability and an interchangeable E-mount lens system, offering unrivalled flexibility and creative expression. The NEX-FS700RH is supplied with the SELP18200 (E 18-200mm F3.5-6.3 OSS) 11x zoom E-Mount lens, with the Optical SteadyShot? image stabilisation system.

High-end production functionality

Based on customer feedback, the NEX-FS700RH includes a number of features providing familiar professional operation and workflows, including 50/60Hz switchability, built-in ND filters, 3G-SDI interface and an enhanced exterior design.

4K RAW and 2K RAW output on AXS memory with HXR-IFR5 adaptor plus HFR

The NEX-FS700RH can capture stunning 4K RAW movie footage or 2K RAW with the AXS-R5 RAW recorder over 3G HD-SDI using the HXR-IFR5 interface unit. The NEX-FS700RH can also capture 4K RAW at High Frame Rate (HFR) of 100 frames per second (fps) or 120 fps for approximately 4 seconds, and 2K RAW at 100 fps, 120 fps, 200 fps or 240 fps continuous recording, with the only limitation of memory capacity and/or battery life.

Features:

K Super 35 "Exmor" CMOS sensor

The NEX-FS700RH camcorder uses a 4K "Exmor" Super 35 CMOS sensor (total 11.6 million pixels). This high-speed readout chip is optimised for motion picture shooting, giving high sensitivity, low noise and minimal aliasing.

4K RAW and 2K RAW output on AXS memory with HXR-IFR5 adaptor

The NEX-FS700RH can capture stunning 4K RAW movie footage with the AXS-R5 RAW recorder over 3G HD-SDI using HXR-IFR5 interface unit. The 4K RAW (4096 x 2160) format output from the NEX-FS700RH is in 23.98p, 25p, 29.97p, 50p and 59.94p. After recording onto the Access Memory Card, the 4K workflow is the same as the PMW-F5.

Superb dynamic range with S-Log2 and 709 Gamma curves available

The NEX-FS700RH allows users to have up to 1300% dynamic range (S-Log2) and 800% (709 Gamma).

Synchronised recordings via HD-SDI and HDMI

In addition, HD-SDI Remote Interface protocol is embedded in the HD-SDI signal. This allows users to trigger a compatible external recorder in synchronisation with the NEX-FS700RH. Also, HDMI embeds the recording status signal, which allows an external HDMI recorder to follow the NEX-FS700RH recording operation.

2K RAW output recordings

The NEX-FS700RH is also able to output 2K RAW (2048 x 1080) format in 23.98p, 25p, 29.97p, 50p and 59.94p.

High Frame Rate 2K/4K RAW recordings

The NEX-FS700RH can capture 4K RAW at High Frame Rate (HFR) of 100 frames per second (fps) or 120 fps for approximately 4 seconds, and 2K RAW at 100 fps, 120 fps, 200 fps or 240 fps continuous recording, with the only limitation of memory capacity and/or battery life.

Super slow motion at 10x at full HD or 40x at lower resolutions

Incredible super slow motion capability of up to 10x (240 fps) slow motion at full HD resolution or up to 40x (960 fps) slow motion at a reduced vertical resolution up-converted into Full HD, giving you creative options that were once only available with specialist high-end equipment.

E-mount interchangeable lenses offer a wide choice of lenses

The E-mount interchangeable lens system utilises an extremely short flange back distance allowing you to use a huge array of lenses via a range of adaptors giving you almost unlimited creative options. With adaptors, more than 35 lens systems are available thanks to the E-mount.

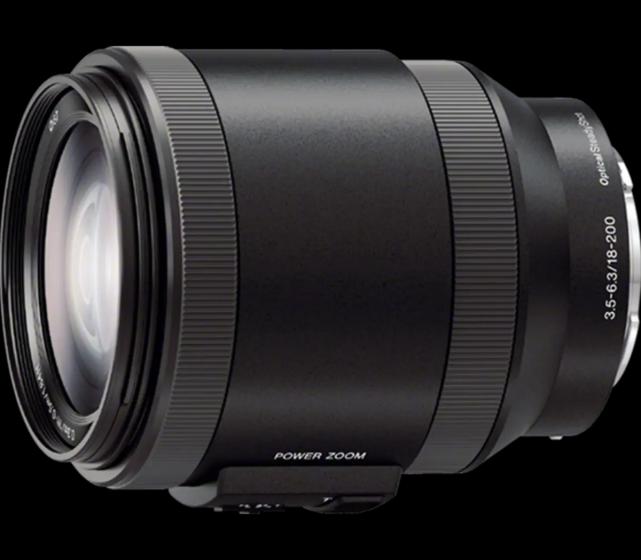

SELP18200 lens supplied

The supplied SELP18200 (E 18-200mm F3.5-6.3 OSS) with the NEX-FS700RH boasts 11x zoom power and Optical SteadyShot? image stabilization with an advanced Active mode that lets you take steady handheld shots while walking around - even without a bulky stabilization rig.

Additional A-mount lenses available

The Sony LA-EA2 and LA-EA3 A-mount lens adaptors allow you to use the wide range of high quality alpha lenses and take advantage of the auto focus function for quicker, more convenient operation.

Built-in ND filters

The NEX-FS700RH features built-in, ultra-thin ND filters, offering exceptional shallow depth-of-field on highlights. It also means less accessories to manage as no external ND filters are required.

3G-SDI interface and HDMI

A 3G-SDI output enables easy integration with highest quality recording formats.

Exceptional ergonomics

The NEX-FS700RH has a refined ergonomic design with a robust detachable handle and grip.

Switchable 50 Hz and 60 Hz shooting

The NEX-FS700RH is switchable between 50 Hz and 60 Hz to allow 24p shooting in PAL areas and no PAL/NTSC limitations.

Selectable magnification and positioning of expanded focus

Expanded focus improvement allowing 4x and 8x magnification and a moveable area of expansion for easy focusing with shallow depth of field.

Camera profile settings storage on the memory card

Up to 99 camera profile settings can be stored, allowing rapid adaptation to multiple shooting environments without time wasted adjusting parameters. Settings are also easily shared in multi-camera productions.

Features:

  • CameraSensorExmor Super35 CMOS sensorNumber of pixelsTotal pixels approx. 11.6M
  • Effective pixels in movie shooting (16:9) approx. 8.3M
  • Effective pixels in still picture shooting (16:9) approx. 8.4M
  • (3:2) approx. 7.1M
  • Built-in ND filters clear, 1/4, 1/16, 1/64Color temperature auto, ONE PUSH AB, INDOOR (3200K), OUTDOOR (5800K?7 positions), MANU WB TEMP (2300K~15000K, 100K steps)
  • Zoom lensSELP18200 E mount LensApprox. 11x zoom (Optical)
  • f=18~200 mm, 35 mm equivalent 30.6~340 mm (16:9), 34.2~380 mm
  • (3:2) F3.5~6.3
  • Filter diameter 67 mm Optical Steady Shot installed
  • Camera systemRecording format-Video recording formatHD MPEG-4 AVC/H.264 AVCHD Ver.2.0
  • SD MPEG-2 PS
  • Recording format-Audio recording format linear PCM 2ch (48kHz 16-bits) (in HD)
  • Dolby Digital 2ch (48 kHz 16-bits)
  • Recording mode (Recording bit rate is the total of video and audio)* HDPS max 28 Mbps, 1920 x 1080/60p, 50p, 16:9
  • FX max 24 Mbps, 1920 x 1080/60i, 50i, 30p, 25p, 24p, 16:9
  • 1280 x 720/60p, 50p, 16:9
  • FH approx. 17 Mbps (ave), 1920 x 1080/60i, 50i, 30p, 25p, 24p, 16:9
  • 1280 x 720/60p, 50p, 16:9
  • HQ approx. 9 Mbps (ave), 1440 x 1080/60i, 50i, 16:9
  • LP approx. 5 Mbps (ave), 1440 x 1080/60i, 50i, 16:9
  • Recording mode (Recording bit rate is the total of video and audio)* SDHQ approx. 9 Mbps (ave), 720 x 480/60i, 720 x 576/50i, 16:9, 4:3Recording mode (Recording bit rate is the total of video and audio)* Recording media flash Memory Unit (HXR-FMU128), MS PRO Duo (Mark2 only),
  • MS PRO-HG Duo, SD/SDHC/SDXC Class4, and higher
  • Input/OutputMemory card slots PRO Duo, SD/SDHC/SDXC compatible x13G HD-SDI OUT BNC connecter x1HDMI OUT HDMI connecter (type A) x1COMPONENTOUTmini D terminal x1VIDEO OUT RCA Pin x1AUDIO OUT RCA Pin x2Headphone jack stereo mini jack (A,3.5 mm) x1USB jackMini-AB x1AUDIO INPUT 1/INPUT 2XLR 3-pin (Female) x2, LINE/MIC/MIC +48V selectableRemoteStereo mini-mini jack (?2.5 mm) x1LCD screen size8.8 cm (3.5type, 16:9)Total dots(H x W) Approx. 921000 dots (1,920 x 480)GeneralPower supplyDC7.2 V (Battery Pack), DC7.6 V (AC-DC adaptor)Power consumption9.6 W (60i), 8.8 W (50i)Operating temperature0 ~ 40?CStorage temperature-20 ~ +60?CDimensions (W x H x D)145.0 mm x 178.5 mm x 235.5 mm (including protrusions)Body mass1,680 g (3 lb 11 oz)Total mass in recording3,220 g (7 lb 2 oz)
  • (Mass including SELP18200 [optional], Battery [NP-F770], VF w/ large eyecup, handle, ECM-XM1, grip)
