Video Projectors Large Venue

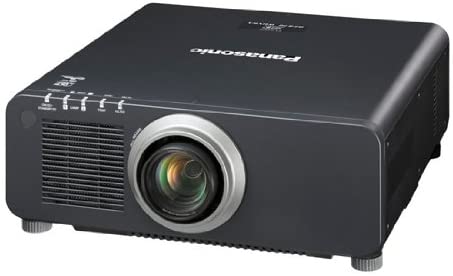

Panasonic 8500 Lumen DZ870UK WUXGA Projector


Panasonic PT-DZ870 8500 Lumens 1-Chip DLP Projector, Powered Zoom Lens, 10000:1 Contrast Ratio, WXGA 1920x1200 Resolution, 16:10 Aspect Ratio, 3D Ready, Black.

The Panasonic PT-DZ870 8500 Lumens 1-Chip DLP Projector (Black) features a dynamic RGB Booster to provide high picture quality and colour reproduction and DIGITAL LINK for All-in-One connectivity.

With the incorporation of the new 420W dual lamp and new lamp drive system, the PT-DZ870 is able to deliver a high brightness of 8500 lumens in an incredibly compact body. The Panasonic proprietary Dynamic RGB booster, which has been enhanced, provides images with brilliant colour and brightness, optimizing lamp intensity of individual red, green and blue colours according to each scene. Detail Clarity Processor 3 improves the clarity, detail and depth of images and the System Daylight View 2 function also helps maintain picture quality, even in a bright room. The PT-DZ870 is 3D-compatible and supports various 3D formats including frame packing, side by side, top and bottom, line by line and simultaneous.

The projector delivers continuous immersive image quality thanks to its shielded optical system which effectively blocks dust and its new heat pipe system which enables an efficient cooling system. The PT-DZ870 is also designed with a dual lamp system that eliminates projection interruption due to lamp failure. The Lamp Relay mode alternates the operation of each lamp to enable the 24/7 operation of the projector. Furthermore, its lamp replacement cycle has been improved compared to conventional Panasonic 1-chip DLP models and is now up to 3000 hours in normal mode and 4000 hours in eco mode for reduced maintenance.

Projector Size

7.87" x 19.61" x 21.89" (HxWxD)


40.3 lbs

Audible Noise

40 dB / 35 dB (Eco)

Internal Speakers



1,030 Watts 120V - 240V

Connection Panel

Composite: BNC

DVI Digital Input


HDBaseT: RJ-45


Network: RJ-45


RS232: DB-9pin

VGA In: Dsub-15pin


  • DIGITAL LINK for simplified AV infrastructure: The PT-DZ870 offers more than just high picture quality, ease of maintenance, and system reliability
  • Flexible installation and diverse functions: The built-in Geometric Adjustment function expands creative projection possibilities by facilitating projection onto spherical, cylindrical, and other specially shaped screens
  • Standard Lens: Panasonic TKGF0156 Standard Lens 1.7-2.4:1
