Video Format Converters

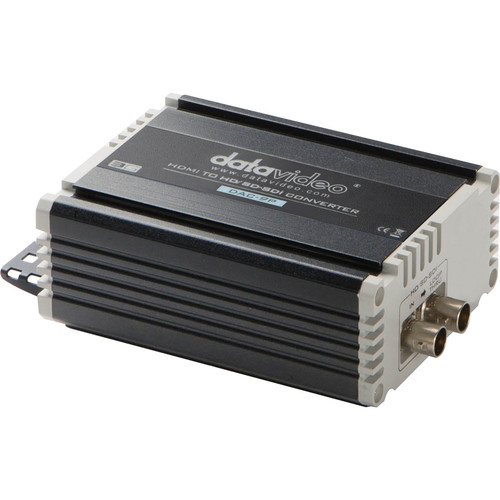

Datavideo 9P HDMI to SDI converter

Description:

o be monitored on professional SDI displays up to 300 ft away. The converter auto-senses the image quality of the HDMI input and outputs it according to this quality as either HD-SDI or SD-SDI. The converter accepts both NTSC and PAL, automatically detects whether the input is one or the other, and supports resolutions up to 1080p/60 NTSC or 1080p/50 PAL.

Please note: DAC-9P is not compatible with the HDMI output from the Sony HDR-FX7 camera.

Converts video with embedded audio

Supports up to 1080p/60 NTSC or 1080p/50 PAL

Auto-sensing HDMI 1.4 input and two HD/SD-SDI outputs

Outputs as either HD-SDI or SD-SDI based on the image quality of the input

Features:

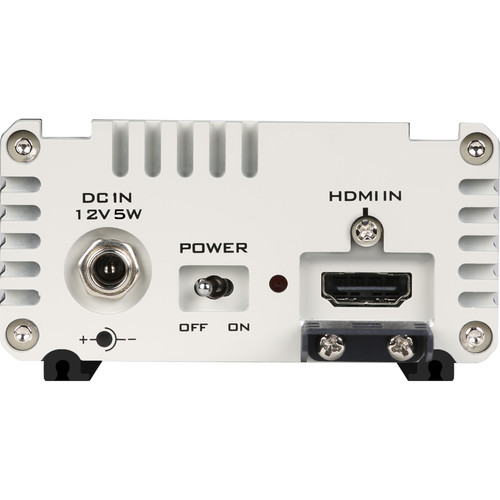

  • Input 1x HDMI 1.4
  • Please note: DAC-9P is not compatible with the HDMI output from the Sony HDR-FX7 camera.

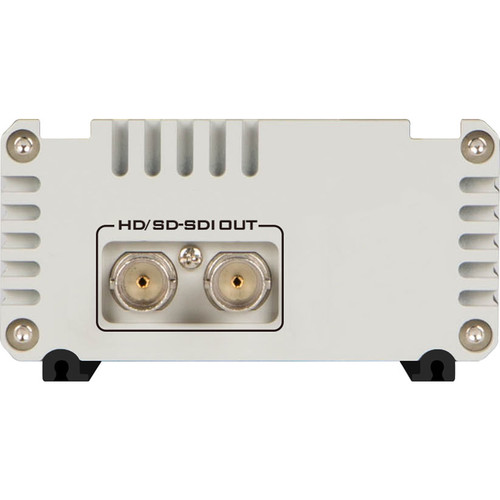

  • Output 2x HD/SD-SDI
  • Supported Resolutions 1080p60 / 1080p59.94 / 1080p50
  • 1080p30 / 1080p29.97 / 1080p25 / 1080p24 / 1080psf23.98
  • 1080psf30 / 1080psf29.97 / 1080psf25 / 1080psf24 / 1080psf23.98
  • 1080p30 / 1080p25 / 1080p24
  • 1080i60 / 1080i59.94 / 1080i50
  • 720p60 / 720p59.94 / 720p50
  • 576i / 480i
  • Power 12 V 0.5A 5W
  • 110/220 V
  • Dimensions 4 x 3.25 x 1" (10.1 x 8.2 x 2.5 cm)
  • Weight .5 lb (.2 kg)
