Video Switchers, Scalers and Converters

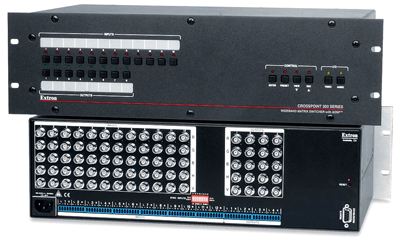

Extron Crosspoint 300 124 Matrix Switcher


The Extron CrossPoint 300 124 Switcher is designed to route wideband RGBHV and stereo audio signals. This 12x4 matrix switcher features 300 MHz (-3 dB) bandwidth, fully loaded, and are also fully compatible with RGBS, RGsB, HDTV, component video, S-video, and composite video signals.

The CrossPoint 300 124 Switcher includes Extron


  • Outputs: Video on female BNC connectors; audio on captive screw connectors.
  • 300 MHz (-3 dB) RGB video bandwidth, fully loaded - Designed for routing most common high resolution computer-video rates without signal degradation. The CrossPoint 300 Series provides a minimum 300 MHz (-3 dB) of RGB video bandwidth at full performa
  • Extremely flat response - Switcher performance is further enhanced by the extremely flat response in the critical portion of the bandwidth curve, between 0 and 130 MHz.
  • ADSP
