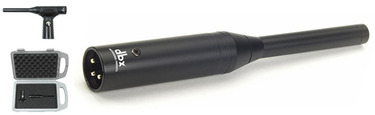

dbx RTA-M DriveRack RTA Measurement Microphone with Clip

Description:

he optional RTA-M real time audio analyzing mic is the perfect accessory tool for the DriveRack PA series (PA, PX, PA+, PA2) and 260. Used in conjunction with the System Setup Wizard and Auto EQ Wizard the RTA-M is ideal for optimizing the sound quality of even the most difficult of acoustic environments.

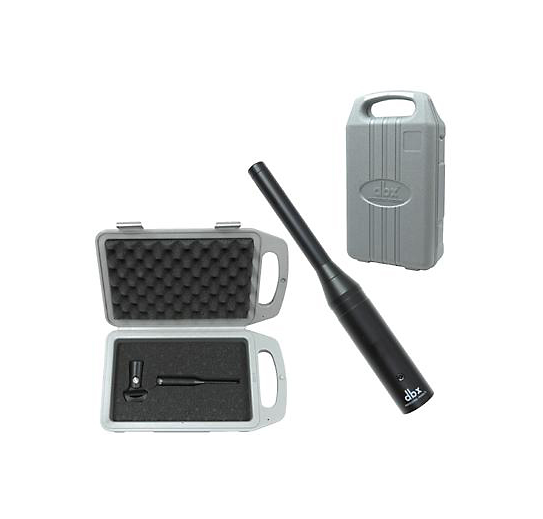

The RTA-M is an omni-directional, flat frequency measurement microphone specially designed for the Driverack series to pick up all frequencies from 20 Hz to 20 kHz , ensuring accurate "pinking"/real-time analysis of your audio. It runs on phantom power (supplied by the Driverack units) and comes with a clip and case.

The DBX DriveRack Measurement Microphone (RTA-M) is an electret condenser microphone for use with the Real Time Analyzer function of the DBX DriveRack Control Processors. It runs on 15 volts of phantom power and produces a flat response from its omnidirectional pattern. Perfectly suited for live sound or contract installs.

Flat frequency response

Omnidirectional Pattern

Features:

• Transducer Electret Condenser
• Frequency Response 22Hz to 22kHz
• Signal-to-Noise Ratio <110dBu
• Power Requirements 15V Phontom Power
• Polar Pattern : omni-directional
• Element : back electret-Condenser
• Frequency Response : 20 Hz - 20 kHz
• Impedance : 250 30% (at 1,000Hz)
• Sensitivity : -63 dB +-3 dB ( 0 dB=1V/ microbar 1,000 Hz indicated by open circuit )
• Operating Voltage : phantom power 9V-52VDC

•
