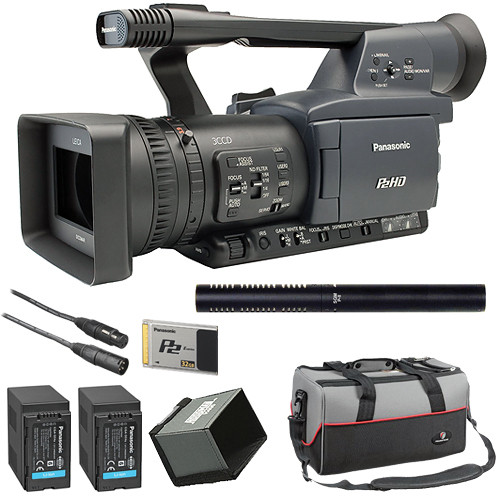

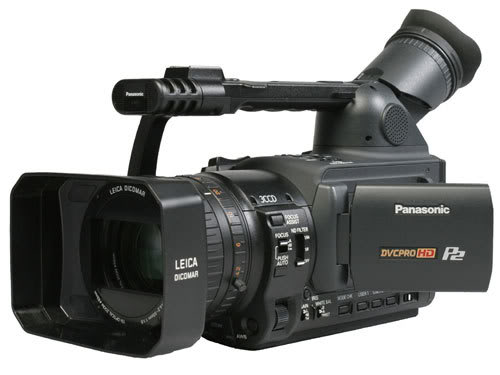

Panasonic AG-HPX170P 1080P Pro Camera

Description:

The AG-HPX170 is an ultra-mobile P2 HD handheld camcorder featuring full, 4:2:2 independent frame production quality HD and solid-state recording. The lighter HPX170 is fully solid state, and comes with a host of enhancements including a 1/3" progressive 3-CCD imager system, wider Leica Dicomar 13x lens, an HD-SDI interface, metadata input and management. The HPX170 has two P2 card slots and records in 20 HD and SD formats. Its newly enhanced 1/3" progressive 16:9 3-CCD imager delivers an excellent signal-to-noise ratio, lower noise/smear, and exceptional low-light performance. High-end features like Dynamic Range Stretch (DRS) which allows for better control over highlights and shadows in run and gun situations. The digital signal processor with 14-bit A/D conversion and 19-bit processing assure high-quality recordings necessary for top-level production and broadcast. Because the HPX170 scans the initial image at a 1080p/60 and all cameras processing happens at his level. Because of this images maintain the highest quality possible up to the final conversion for compression and recording. The HPX170 is ideal for professionals looking to take full advantage of the reliability and flexibility of the fast, file-based P2 workflow.

Features:

  • Signal System NTSC 1080/60i, 30p, 24p 720/60p, 30p, 24p 480/60i, 30p, 24p Image Device 3-CCD, 1/3"
  • 16:9 Native Aspect Chips Lens Leica Dicomar 13x Zoom 3.9-51mm f/1.6-3.0 (35mm Equivalence 28-368mm)
  • 72mm Filter Diameter Signal-to-Noise Ratio Not Specified By Manufacturer
  • Horizontal Resolution 1080 Lines
  • Sensitivity Not Specified By Manufacturer Minimum Illumination 3 lux Vertical Smear Not Specified By Manufacturer
  • Built-in Filters 1/8 ND, 1/64 ND
  • LCD Monitor 3.5", 210,000 Pixels
  • Viewfinder 0.44" Color, 235,000 Pixels
  • Scan Matching Yes
  • Different Ranges for Different Record Modes Memory Card Slot SD Memory Cards for Scene-File Sharing
  • Two P2 Card Slots for Video Shutter Speed Range 60i/60p mode (Preset) 1/60 (off), 1/100, 1/120, 1/250, 1/500, 1/1000,1/2000s 30p/30pN mode 1/30, 1/50 (off), 1/60, 1/120, 1/250, 1/500, 1/1000s 24p/24pA/24pN mode 1/24, 1/50 (off), 1/60, 1/120, 1/250, 1/500, 1/1000
  • Gain Selection 0-18dB Range
  • VTR Tape Format Not Applicable
  • Tape Speed Not Applicable
  • Signal-to-Noise Ratio Not Specified By Manufacturer
  • Maximum Recording Time Not Applicable
  • Audio Audio Dynamic Range Not Specified By Manufacturer
  • Audio Signal Format 16 bit/48kHz Four Channels Audio Frequency Response 20Hz to 20kHz Signal to Noise Ratio Not Specified By Manufacturer
  • General Input and Output Connectors Component Video: Video Terminal (x1 Output)
  • Composite Video: RCA (x1 Output)
  • HD/SD-SDI: BNC (x1 Output)
  • Analog Audio L/R: 3-Pin XLR (x2 Input)
  • Line: Pin-Jack (x1 Output) FireWire: 6-Pin Locking USB 2.0: MiniB
  • Camera Remote: 2.5mm Super Mini (Zoom), 3.5mm Mini (Focus/Iris)
  • Power Requirements 7.2VDC (with Battery) 7.9VDC (with AC Adapter)
  • Power Consumption 10.9W (without LCD Monitor) 11.7W (with LCD monitor) 13.8W (Max)
  • Operating Temperature 32-104?F (0-40?C)
  • Dimensions (WxHxD) 6.1 x 7.1 x 15.7" (15.4 x 18 x 39.7cm)
