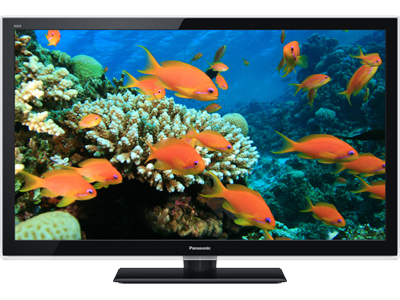

47" Panasonic TC-L47E5 High Definition Display TV Monitor



Screen Size Diagonal (inches) 46.9

Aspect Ratio 16:9

Number of Pixels 2,073,600 (1,920 x 1,080)


HDTV Display Capability (1080p, 1080i, 720p) yes

Aspect Control 480i/p: FULL, JUST, 4:3, ZOOM / 1080i/p: FULL, H-FILL, JUST, 4:3, ZOOM


Viewing Angle 178 degrees

Filter Clear Panel

Panel Drive 180 backlight scanning

24p Playback (3:2)/24p Smooth Film yes/ -

Intelligent Scene Controller yes

Smart VIERA Engine Pro

Vivid Color Creation yes


3D Real Sound yes

Number of Speakers 2

Audio Output 20 W

Surround Sound AV Surround


Integrated ATSC Tuner yes

HDMI Input null / 4 (4 side)

Support Feature Audio Return Channel (Input 2)

SD Card yes (SDXC)

USB2.0 2

Analog Audio Input (for HDMI/DVI) yes

Composite Video Input shared with Component RCA x 1 (lower) *

Audio Input (for Composite Video) RCA x 1 (lower) *

PC Input D-sub 15-pin x 1 (lower)

Component Video Input (Y, PB, PR) shared with Composite RCA x 1 (lower) *

Audio Input (for Component Video) RCA x 1 (lower) *

Ethernet 1 (lower)

Digital Audio Output 1 (lower)


Online Movies yes

VIERA Remote App Support yes

Wireless LAN Adaptor WiFi Ready

DLNA yes

Media Player null / yes (SD Card/USB)

Support Format AVCHD Progressive/SD-VIDEO/MotionJPEG (Lumix)/MKV/MP4/MOV/M4v/FLV/3GPP/VRO/VOB/TS/PS, MP3/AAC/FLAC, JPEG

VIERA Link yes

VIERA Tools yes

Eco Mode yes

Game Mode yes

Trilingual Menu (English/Spanish/French) yes

Built-In Closed Caption Decoder yes

Off - Timers yes


Power Supply 1 AC 110 - 127 V, 60 Hz

On Mode Average Power Consumption 60.2 W

Receiving System ATSC/QAM/NTSC

Dimensions with stand

Height [inches (mm)] 28.1" (712 mm)

Width [inches (mm)] 43.6" (1,107 mm)

Depth [inches (mm)] 10.6" (268 mm)

Dimensions W/O stand

Height [inches (mm)] 26.3" (666 mm)

Width [inches (mm)] 43.6" (1,107 mm)

Depth [inches (mm)] Max: 2.1" (52 mm) ; General: 1.6" (40 mm)

Weight with stand [lbs (kg)] 44.1 lbs. (20.0 kg)

Weight W/O stand [lbs (kg)] 36.4 lbs. (16.5 kg)

Carton Dimensions

Height [inches (mm)] 30.9" (784 mm)

Width [inches (mm)] 52.5" (1,331 mm)

Depth [inches (mm)] 6.4" (162 mm)

Gross Weight [lbs (kg)] 53.0 lbs.(24.0 kg)

Operating Temperature 32?F - 95?F (0?C - 35?C)

Safety Standard US: UL60065/FCC Part15, CANADA: CSA C22.2/IC BETS-7

VESA Compatible yes

Further Specifications

NOTE * with Special Adapter cable (dedicated) / ** HID (Human Interface Device Profile) compliant keyboards are available. A2DP (Advanced Audio Distribution Profile) compliant audio devices are available.
