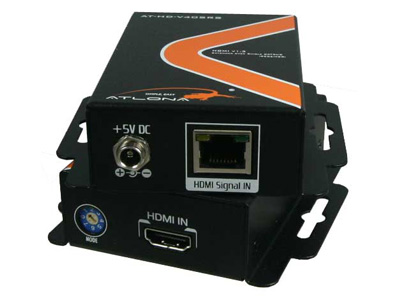

HDMI extender over CAT5 CAT6 Atlona AT347-822-9350

Description:

The Atlona AT-HD-V40SRS is a perfect solution for those who need to extend HDMI signal for a long distance over a single low cost cat5 or cat6 cable. The Atlona HDMI Extenders can handle HDMI 1.3 standard and high resolutions up to 1080p at up to 110ft and 1080i up to 200ft.

The Atlona HDMI Extenders can handle HDMI 1.3 standard and high resolutions up to 1080p at up to 110ft and 1080i up to 200ft. Atlona is an only company that has HDMI balun system which is using a single cat5 or cat6 wire and is able to pass full 1080p @ 36bit color

Features:

• 3D Capable
• HDMI over Single Cat5 or Cat6 (Full spectrum of resolutions and audio support)
• Supporting the latest (HDMI1.3) 36 bit deep color standard, it can be connected even to the latest Blu-ray players, set top boxes, AV receivers or Apple TV.
• Perfect video quality 1080p up to 110ft and 1080i up to 200ft
• Supports high resolution up to 1920x1200 or 1080p
• Supports all latest HDMI audio formats including Dolby TrueHD and DTS-HD
• Supports CAT-5/CAT-5E/CAT-6 cables of variable types.
• Silicon Image Chip-Sets allow 99.99% compatibility with all the AV gear (we only use Best)
• Wall Mountable (comes with mounting ears)
• Easy to install and simple to operate.
• Technical Specifications:
• Video Bandwidth: 6.75Gbps (HDMI 1.3a)
• Resolutions: 1080p (up to 110ft ) and 1080i/720p (up to 200ft)
• Input TMDS signal: 1.2 volts (peak-to-peak)
• Input DDC signal: 5 volts (peak-to-peak)
• HDMI Connector: 19 pin type female connector
• Power Supply: 5V 2A
• Power Consumption: 10 Watts (max)
• RJ-45 Connector: 2 indication LED's
• Dimensions: 70mm x 60mm x 25mm / 2.8x2.4x1 (L x W x H)
• Weight: 0.3lb each unit

Options:

• CAT 5 or CAT 6 Cables of varying lengths
