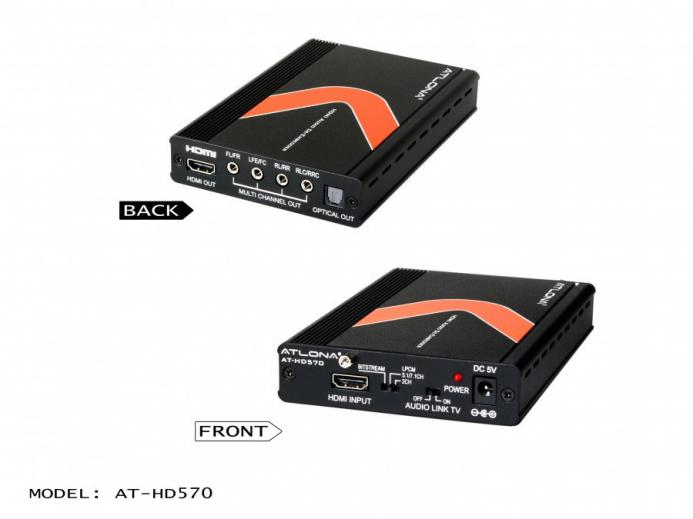

HDMI Audio De-Embedder extractor with 3D Support Atlona AT-HD570

Description:

The Atlona AT-HD570 is a professional quality HDMI Audio De-Embedder. Unit is capable of accepting an HDMI input signal and de-embedding the audio signal to either Optical or Multi-Channel analog audio outputs. This audio decoder supports uncompressed analog LPCM 7.1, 5.1, 2ch through the mulit-channel analog outputs with Dolby Digital, LPCM 2CH and DTS output through optical connection. Supports Dolby True HD and DTS HD Master Audio pass through HDMI connection.

Input port: HDMI Female (type A)

Output port: HDMI Female (Type A); Optical (TosLink); 4 x 3.5mm Outs for Multi-Channel Audio

HDMI input/output audio format: LPCM 7.1, 5.1, 2ch and Bit stream Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS and DTS-HD Master Audio)

Optical Output audio format: Dolby Digital, DTS 5.1, 2ch and LPCM 2 channels

Multi-Channel audio format: LPCM 7.1/5.1/2 channels

Features:

• 3D Capable
• HDCP Compliant
• Support CEC bypass
• Supports digital video formats in Deep Color Mode from 25MHz to 6.75GHz for 36 bits
• Supports high definition input up to 1080p
• Video Pass-Through, no scaling
• Supports HDMI signal amplification and equalization with reclocking function
• Supports uncompressed digital audio formats LPCM 7.1, 5.1, 2ch through multi-channel analog outp
• Supports Dolby TrueHD and DTS-HD Master Audio pass through HDMI output
• Supports Dolby Digital, DTS 5.1, 2ch, and LPCM 2ch output through optical connection.
• Integrated HDMI Booster and Repeater.
