Mixers, Processors, Distribution Amplifiers and Baluns

HDMI-RJ45 CAT5/6/7 High Speed Transmitter 3D 1080 upto 130 ft receiver ATLONA AT-HD4-SI140R also for sale

Description:

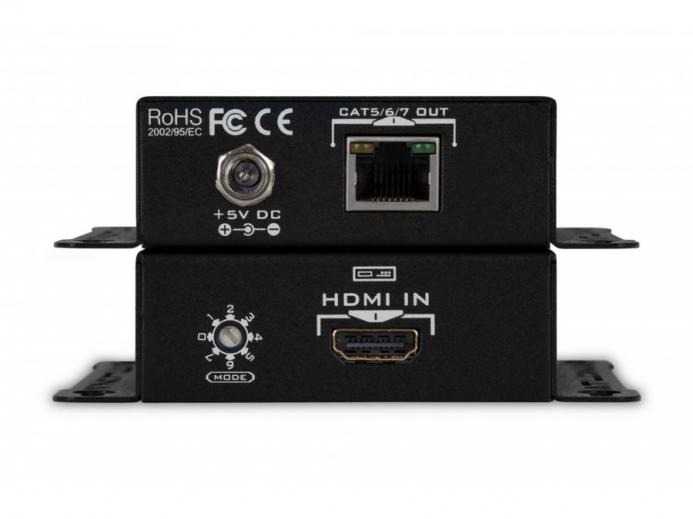

The Atlona AT-HD4-SI40SR is an HDMI over Cat 5/5e/6/7 Extender Kit, which allows Deep Color and full 3D support plus DTS-HD and Dolby TrueHD over a single low cost Cat 5/5e/6/7 interface with up to 130ft full HD 1080p or 1920x1200. The Atlona AT-HD4-SI40SR is a perfect solution for extending a Blu-Ray player, Sony PlayStation or Apple TV from a remote location.

Features:

  • Key Features:
  • 7 selectable on board EDID modes plus learning feature to ensure optimal display requirements are met
  • High Speed HDMI - Deep Color & full 3D support
  • Extends the transmission up to 130ft (40m) from an HDMI source at Full HD 1080p
  • Pure uncompressed 7.1ch digital audio preserved over HDMI to Cat.5/5e/6/7 cable transmission
  • DTS-HD and Dolby TrueHD high bit rate audio support
  • HDCP Compliant
  • Adjustable 8-level equalization control compensation to optimize signal transmission when longer HDMI cables are necessary
  • Wall mounting housing design for easy and robust installation
  • Technical Specifications:
  • Transmitter Input: HDMI (Type A)
  • Transmitter Output: RJ45
  • Receiver Input: RJ45
  • Receiver Output: HDMI (Type A)
  • HDCP/EDID Compliant: Yes
  • Resolution Support: Up to1080p or 1920x1200
  • Deep Color support
  • Full 3D support: Yes
  • Audio support: Up to 7.1 channel uncompressed digital audio
  • Signal equalization: 8-level digital control at RX
  • EDID: 7 presets plus learning capability
  • Dimensions: 2.9? x 3.5? x 1? (75 x 90 x 25mm)
  • Weight: 1.1lbs (480g) each
  • Power Supply: 5V 4A DC (universal 110/220v)

Options:

  • Ethernet cables
  • HDMI cables
