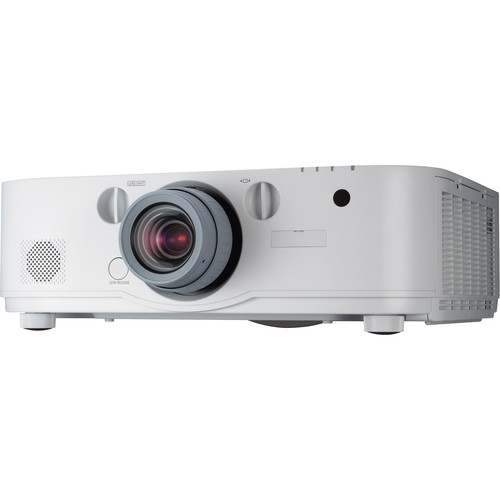

NEC NP-PA 622U 1920 X 1200 HD 6200 lumen 6000 contrast

Description:

The NP-PA622U Advanced Professional Installation LCD Projector from NEC features a WUXGA (1920 x 1200) resolution. For connectivity, it affords dual HDMI inputs with HDCP support, a USB Viewer, a VGA input, and more. It also supports built-in HDBaseT support. The projector provides up to 6200 lumens of brightness and a contrast ratio of 6000:1. The 4000 hour lamp life in Eco Mode and filter free design ensure a lower overall cost of ownership as well.

The NP-PA622U provides automatic keystone correction technology, which instantly projects a square image even when the projector is set up at a steep offset angle to the screen. It also features an integrated active lens cover, which mutes audio and video while lowering the lamp power to conserve energy. Other features include a 10W speaker and Eco Mode technology, which helps extend lamp life and lowers power consumption with constant brightness and prevents the usual drop in brightness over time while maximizing lamp life. Plus, the projector is compatible with NTSC, PAL, and SECAM video systems.

This projector does not ship with a lens.

3D Reform

It allows you to square the image by adjusting horizontally, vertically or diagonally when the projector cannot be placed parallel or perpendicular to the screen

Cornerstone

Enhanced keystone correction allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen

Variable Audio-Out

This input enables the remote control to be used to adjust volume of self-powered external speakers that are connected to the projector. In stand-by mode, the audio-out stays active, allowing the last input used to pass to the self-powered external speakers

Geometric Correction

Projecting an image isn't confined to a standard flat screen or wall with the NEC PA Series. Geometric correction allows these models to project an image on spheres, cylinders, corner angles and many more non-standard surfaces

Lens

This projector does not come with a lens. It allows for a quick and easy lens exchange. Optional six bayonet-style lenses enable the user to determine the appropriate lens to cover projection distances between 2.6 and 179.8 feet

Edge Blending

This function seamlessly blends multiple projected images to display a single high-resolution image

TileMatrix Technologies

Multi-display capabilities and TileMatrix technologies are integrated into the projector. This processing is all done internally and therefore only an external distribution amplifier is required to produce a beautiful 4K resolution image. Multi-display support with Picture-by-Picture/Picture-out-Picture

Stacking Correction

Built-in stacking correction capabilities (up to four projectors) allows the projectors to boost an image's brightness up to 24,800 lumens, which is ideal for larger-sized screens and environments with ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector

Input Panel Cover

This optional accessory creates a clean look for your installation, while hiding signal cables and the power cord

Virtual Remote

Used via a network connection (wired/wireless), so you can control the projector directly from a computer without the need for additional control cables

Built-In HDBaseT Support

Simplify your installations with HDBaseT. Optimized for video applications and supporting uncompressed full HD digital video, audio, Ethernet, power and various control signals. With only a single cable (up to 100 m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage. What's more, control signals are contained in the same cable. Project uncompressed FHD video with integrated HDBaseT

Dual HDMI Inputs

Among the projector's wide selection of inputs are dual HDMI with HDCP for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers and personal computers. With multiple HDMI connections, loop out up to four projectors

4000-Hour Filter Life

NEC is committed to designing its products to provide long lifecycles. This commitment even extends to components within its products, including the filter. This virtually maintenance-free filter reduces the frequency at which cleaning is required, thereby decreasing your total cost of ownership. Filter replacement is only required at the time the lamp is replaced

Built-in HTTP Page

It is for control and monitoring over a LAN network. Email notification of error messages or lamp end-of-life can be sent to remote locations

Wide Selection of Inputs

Dual computer inputs ensure quick switching between presentations

? Four audio inputs (two mini stereo [Comp1 & Comp2], R/L [RCA - shared by video sources] and HDMI) make it easy to add sound to your presentations

Portrait Mode

Ability to install a projector in its side to create a 10:16 portrait image

ECO Mode

Extends lamp life, lowers audible noise and reduces total cost of ownership

Tilt-Free Installation

Tilt-free installation capabilities makes this projector ideal for almost any install environment, including portrait orientation

Remote Control

Easy control from remote allows you to adjust lamp mode, aspect ratio, volume and image all with the touch of a button

Integrated Software Applications

Integrated software applications such as DisplayNote, Crestron Roomview, AMX Beacon and PJ Link allow for complete interactivity and control

DisplayPort

This input provides the projector with expanded connectivity with advanced technology

Wall Color Correction Presets

These provide for adaptive color tone correction to display properly on non-white surfaces

Advanced AccuBlend

Advanced AccuBlend ensures detailed images when non-native resolution sources are connected to the projector

AutoSense

It automatically syncs with any computer signal and features one-touch image optimization

64-Step Image Magnification

64-step image magnification with location control

Source Keys

Source keys for source selection

Remote Diagnostics

They enable the user to monitor and make adjustments to the projector remotely

Additional Features and Specs

Optical Device: Optical isolation by Dichroic mirror, combining by Dichroic prism

Color Reproducibility: 10-bit color processing

Regulations: USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM

USB Viewer

Auto power on

Closed captioning

Carbon savings meter

Sleep timer

Quick power-off

Shift: Mechanical -0.1 to +0.5 vertical, +/-0.3 horizontal

Features:

• Display System 3-Chip 0.76" / 19.30 mm Micro Lens Array (MLA) LCD
• Native Resolution WUXGA - 1920 x 1200
• Supported Resolutions VGA - 640 x 480
• SVGA - 800 x 600
• XGA - 1024 x 768
• SXGA+ - 1400 x 1050
• SXGA - 1280 x 1024
• UXGA - 1600 x 1200
• Format NTSC 4.43
• PAL 60, M, N
• SECAM
• HDTV Compatibility 1080p
• 1080i
• 720p
• 576p
• 576i
• 480p
• 480i
• Pixels 6,912,000
• Brightness 6200 Lumens
• Projection Angle 10.3 - 10.8 (Tele)
• 13.7 - 14.5 (Wide)
• Aspect Ratio Native: 16:10
• Contrast Ratio 6000:1
• 3D Yes
• Color Range 1.07 Billion
• Scan Horizontal: 15 - 108 kHz
• Vertical: 48 - 120 Hz
• Lens
• Lens Shift Vertical: 60%
• Horizontal:30%
• Features
• Keystone Correction Yes, Vertical: 30
• Yes, Horizontal: 40
• Picture-in-Picture None
• Ceiling Mountable Yes
• Rear Screen Projection Yes
• Projection Tilt Option None
• Built-in Speaker Yes, 10W (Mono)
• Input/Output Connectors
• Inputs/Outputs 1x 15-pin VGA Video (Input)
• 1x 5-BNC Video (Input)
• 2x HDMI Audio/Video (Input)
• 1x DisplayPort Video (Input)
• 1x BNC Component Video (Input)
• 1x BNC Composite Video (Input)
• 2x 1/8" (3.5 mm) Mini Audio (Input)
• 1x Ethernet LAN
• 1x HDMI Audio/Video (Output)
• 1x USB Type-A Female
• 1x 1/8" (3.5 mm) Mini Audio (Output)
• 1x VESA 3D Sync Video (Input)
• 1x RS-232C Control
• 1x IR Remote
• Wireless LAN None
• Sync Compatibility Composite Sync
• Separate Sync
• Sync on Green
• General
• Watts Normal Mode: 350W
• Eco Mode: 264W
• Life Normal Mode: 3000 Hours
• Eco Mode: 4000 Hours
• Fan Noise Normal Mode: 39 dB
• Eco Mode: 33 dB
• Remote Control Yes
• Security Password Protection
• Power Requirements 100-240 VAC, 50/60 Hz
• Input Current 5.5 A / 2.2 A
• Power Consumption Normal Mode: 460W
• Eco Mode: 362W
• Standby Mode: 7.4W
• Standby Mode (Network off): .11W
• Altitude 0 - 8800' (0 - 2682 m)
• Temperature Operating
• 41 to 104F (5 to 40C)
• Humidity: 20 - 80%
• Storage
• -14 to 122F (-25 to 50C)
• Humidity: 20 - 80%
• Dimensions (WxHxD) 19.7 x 6.5 x 14.4" / 500.4 x 165.1 x 365.8 mm
• Weight 18.5 lb / 8.39 kg

Options:

• NEC NP13ZL Standard
• NEC NP12ZL Short Throw Lens
• NEC NP14ZL Long throw Zoom Lens
