Video Projectors Large Venue

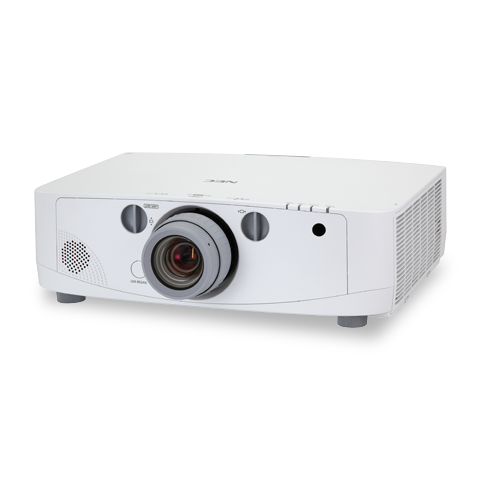

NEC NP-PA 550W 5500 Lumen HD 1280X720P native upto 1080 P projector

500 Lumen HD projector rental

Description:

Display Technology 0.75" LCD w/ MLA

Light Output(Lumens) 5500 normal / Eco = approx. 80% of normal mode

Resolution

Native WXGA 1280 x 800

Maximum UXGA 1600 x 1200

Contrast Ratio (up to) 2000:1

Lamp Type 330W AC / 264W eco

Lamp Life (up to) 3000 hours normal / 4000 hours eco

Screen Size (diagonal) 25 to 500 in. / 0.64 to 12.7m

Throw Ratio 1.50 ? 3.02

Projection Distance 2.5 to 68.5 ft. / 0.74 to 20.9m

Projector Angle 10.3 to 10.8? tele / 13.7 to 14.5? wide

Lens

Zoom Manual, 1 to 2.01

Focus Manual

F number, fnumber F=1.7 to 2.2, f=24.4 to 32.5mm

Shift Mechanical -0.1 to +0.5 vertical, +/-0.3 horizontal

Keystone Correction +/- 40? horizontal, +/- 30? vertical

Signal Compatibility/Connectivity

Scan Rate

Horizontal 15-108 kHz Vertical 48-120 Hz

Supported Video Standards. NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM

SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA

Macintosh Compatibility Yes

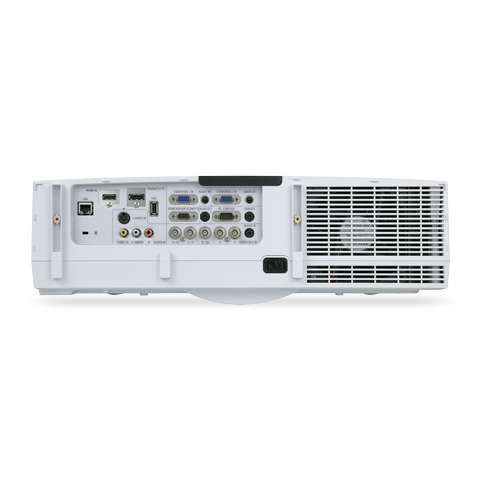

Input/Output Terminals

RGB1(analog) VGA 15-pin D-sub

RGB2(analog) VGA 15-pin D-sub

RGB3(analog) 5-BNC

RGB4(digital) HDMI w/ HDCP

RGB5(digital) DisplayPort

Video 1 RCA

Video 2 S-Video

Audio 1 Mini stereo

Monitor out VGA 15-pin D-sub

Audio out Yes

Audio 10W mono

External Control RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)

Sync Compatiblity Separate Sync / Composite Sync / Sync on G

Networking RJ-45 Monitoring

Electrical

Power Requirements 100-240V AC, 50/60 Hz

Input Current 5.1A

Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) 464W / 372W / 16W / 0.2W

Mechanical

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

Dimensions (WxDxH) 19.7 x 14.4 x 6.5 in. / 499 x 366 x 164mm

Net Weight 17 lbs. / 7.7 kg

Fan Noise 38 dB normal / 31 dB eco

Regulations USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM

Features:

  • ECO Mode? technology helps extend lamp life and lowers power consumption
  • 5500-lumen brightness enhances images for most applications
  • HQV? technology delivers superior home theater video processing
  • Windows Network Projector function simplifies your ability to present from any computer, whether local or remote
  • Geometric Correction Tool allows you to easily project square images on non-flat screen surfaces without distortion
  • Complete line of (5) bayonet-style lenses allows for quick and easy lens exchange
  • Stacking correction capabilities (up to four projectors) allows the projectors to boost an image's brightness up to 22,000 lumens
  • Includes NP13ZL lens

Options:

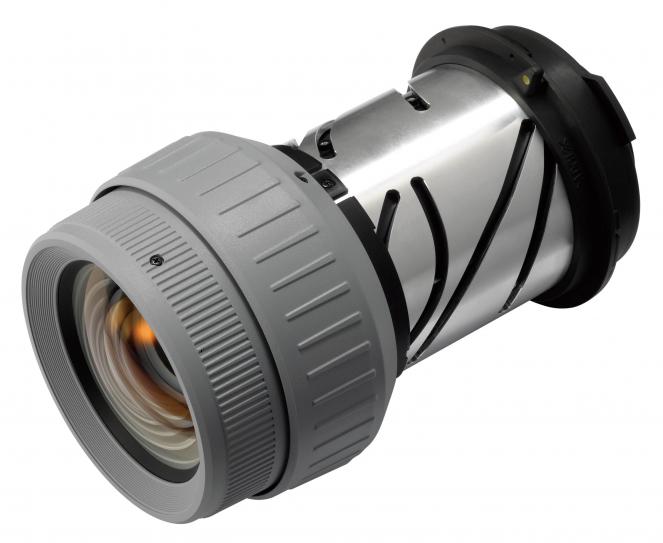

  • NP 13ZL Standard Lens

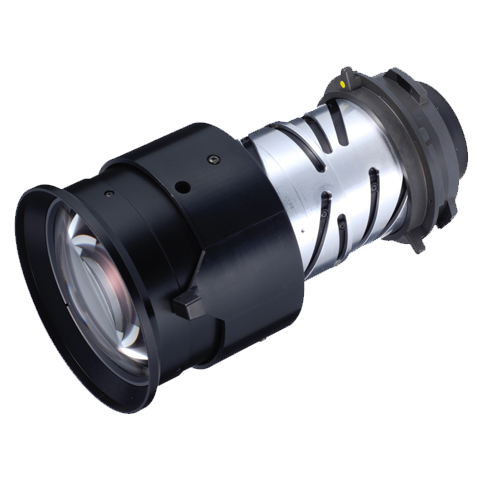

  • NP 12ZL Short throw Lens

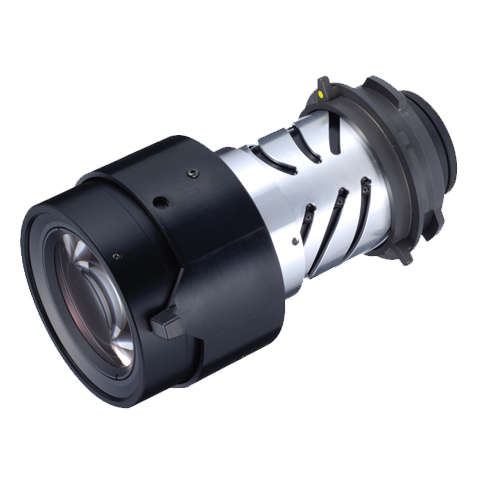

  • NP 14ZL ZOOM LENS LONG THROW
