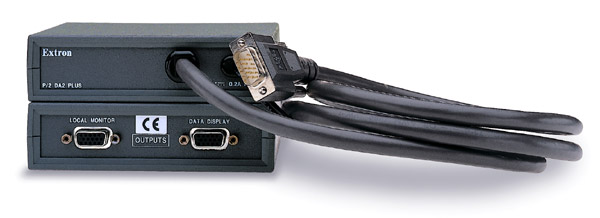

Extron P/2 DA2 Plus 1 X 2 VGA DA Distribution Amp

Description:

One VGA HD 15 Pin input 2 outputs Video Distribution amplifier

Features:

• Input: One male 15-pin HD connector
• Outputs: Two female 15-pin HD connectors
• 270 MHz (-3dB) RGB video bandwidth, fully loaded
• Compatible with all VGA-QXGA monitors, projectors and LCD panels
• Both outputs are individually buffered
• Routes all video card ID bits to local monitor output to allow for automatic resolution selection by DDC1 and DDC2 plug and play cards and projectors
• External universal power supply attached
• Inputs: Number/signal types:1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs. Connectors:(1) 15-pin HD male cable (built-in). Nominal level:0.7 Vp-p for RGB
• Minimum/maximum levels: Analog: 0.3 V to 1.5 Vp-p with no offset at unity gain. Impedance:75 ohms
• Horiz
• Outputs:
• Number/signal type 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs output
• 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs local monitor output/loop-through (ID bits are passed through)
• Connectors (2) 15-pin HD female
• Nominal level 0.7 Vp-p for RGB

•
