Sound/Audio Accessories

Convertert; Analog to Dogital Audio Converter Gefen

Description:

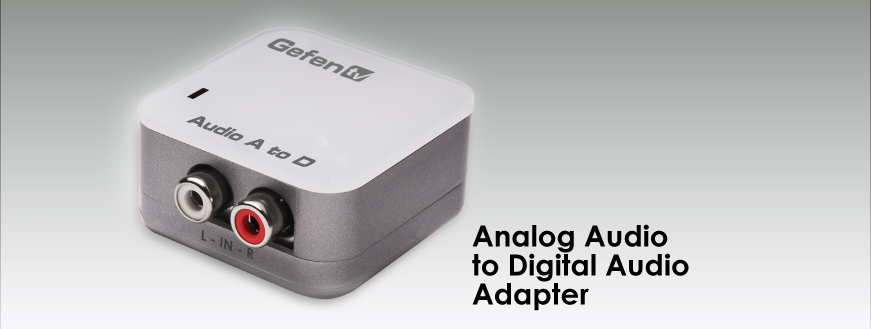

The GefenTV Analog to Digital Audio Adapter converts analog Left/Right RCA-style audio connections to digital S/PDIF or TOSLINK outputs. The unit is compact, easy to install, and operates in a wide variety of operating conditions.

Features:

  • Features
  • Converts analog L/R signals to digital S/PDIF or TOSLink
  • Compact and easy to install
  • Simple to Operate
  • Specifications
  • Supports 48 kHz output sampling frequency

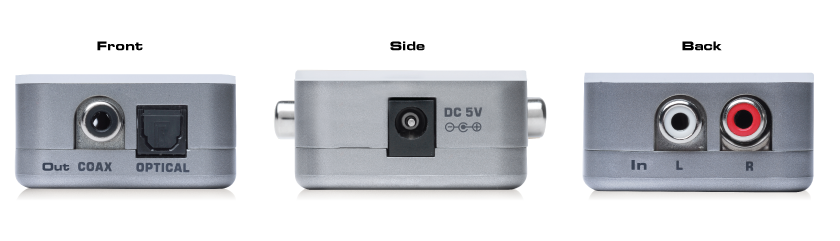

  • Coaxial and optical output ports
  • Right and Left RCA Stereo input ports
  • Supports optical cable run of up to 5 meters (15 feet)
  • Signal To Noise Ratio: >90dB (20Hz-20kHz A weight filter)
  • THD+N < 0.01% at 1kHz at reference level
  • Frequency Response: < +/- 0.5dB 20Hz-20kHz
  • Crosstalk: < -85dB
  • RMS Level (CH1 / CH2): 1.0 Vrms analog input at the -7.4 dBFS digital output level
  • Operating temperature: 0-48 deg. C
  • 5V DC / 0.36A power supply
  • Dimensions: 1.8" W x 1.8" H x 0.9" D
  • Weight: 1 lb.
